Pro Double Side Fine Grinding \ Lapping Machine：

DPS dynamic pressure balance

DPS dynamic pressure balance system is adopted to ensure each processing pressure is constant.

Extensible

Can be equipped with semiautomatic or full-automatic feeding and unloading system.

High processing efficiency

High pressure and high speed, processing efficiency is two times of traditional model.

On-line dimension control

Ensure the consistency of eachprocessing dimension.

Five-stage processing mode

Adopt five-stage pressure control system. Pressure, speed and steering at each stage can be adjusted at will.

SIEMENS

Adopt Siemens control system with fast response and more powerful functions.

  • Pressurization mode

    DPS

  • Maximum Pressure

    1050kgf

  • Wheel diameter

    700mm

  • Ring width

    200mm

  • Max. diameter of grinding

    180mm

  • Max. wheel speed

    145rpm

  • Max. inner gear speed

    90rpm

  • Upper Wheel drive power

    7.5/11kw

  • Lower Wheel drive power

    7.5/11kw

  • Inner gear drive power

    3.5kw

  • Weight

    4500kg

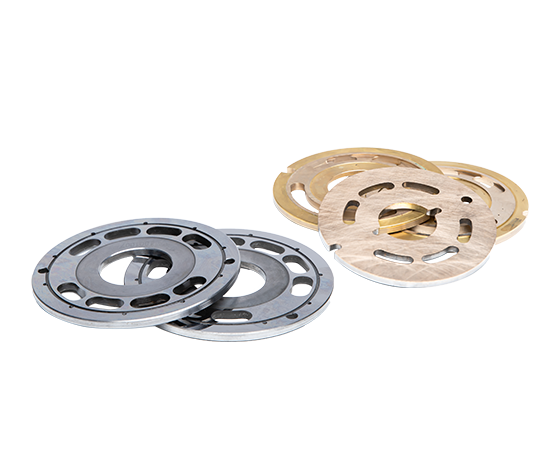

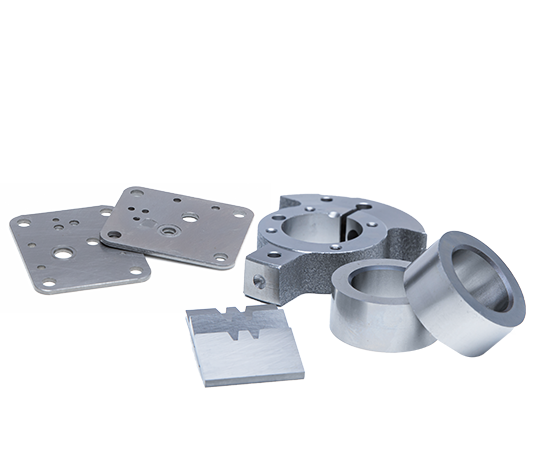

Application area
