Single Side Fine Grinding \ Lapping Machine：

Integrated casting bed

High rigidity and stability.

Various pressurization methods

Various pressurization methods such as cylinder and weight can be used.

Touch screen operation mode

Full touch operation interface, easy to use.

Two independent power motors

The lower wheel and inner ring main shafts are independently driven by two power motors.

Extensible

CBN, DIA, copper and other different materials can be selected as grinding discs or polishing discs, and various processes can be expanded

Mitsubishi

Adopt Mitsubishi control system with high reliability and strong functionality.

  • Pressurization mode

    Weight or Air c ylinder

  • Maximum Pressure

    600kpa

  • Wheel diameter

    1300mm

  • Ring width

    480mm

  • Max. diameter of grinding

    450mm

  • Max. wheel speed

    90rpm

  • Max. inner gear speed

    30rpm

  • Wheel drive power

    15kw

  • Tooling drive power

    3.5kw

  • Weight

    3500kg

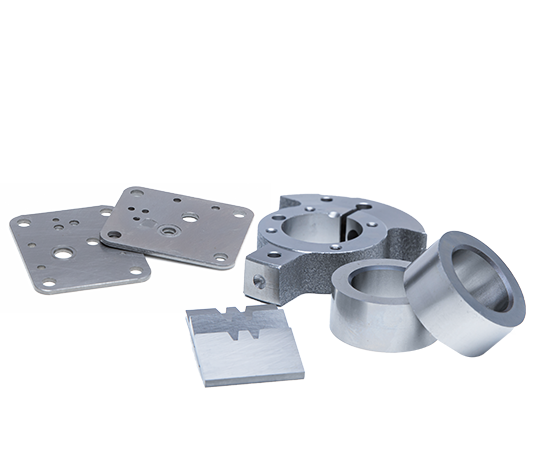

Application area
